6600 page3

Remove the Keypad...

…and the Joystick Hat.

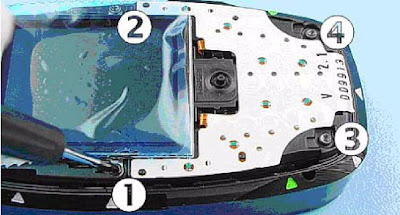

Unscrew the four Torx Plus® size 6 screws.

For assembly, the reverse order and a Torx Plus® driver with a torque of 19Ncm have to be used.

Take the phone from the jig.

The UI Support Frame is attached with four snaps in the B-Cover.
