6600 page4

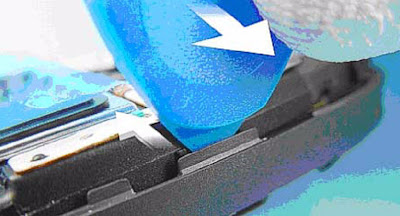

Use the SRT-6 as a lever to release the snap. Do not twist SRT-6, because this would damage the cover.

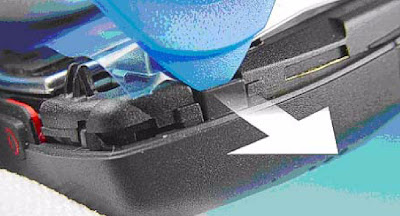

Now release the next snap. Use the same procedure on the other side.

Remove the modules from the B-Cover.

Place the SRT-6 between the Engine Module and the UI Support Frame. To open the connector, twist it carefully as shown in the picture.

Now, the Engine Module can be removed.
